Pilot H4 Manual

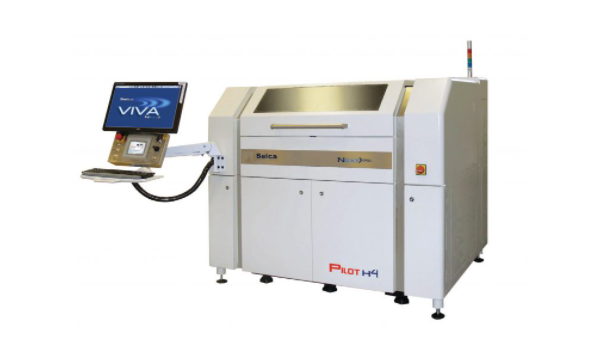

The Pilot H4 Next>series manual represents the best solution for those looking for an economic flying probe test system. This is the ideal solution for low to medium volume production with the ability to expand at a future date. The test area can accommodate 16” x 20” boards with split test. The ATE rack can be expanded with additional analog channels, connectable to an optional external bed of nails test fixture (TPM).
Pilot Pilot H4 Next>series is suitable for:
parametric and vectorless tests
Tests with powered UUT
Boards designed for test (access granted on one side only)
Low-volumes
Irregular boards (loading with pallets)
Features
Testing unit with 4 flying probes on one side
Manual loading
test vectorless on digital components, in-circuit tests
‘quick-test’ software for functional sequence implementation
On-board programming, boundary scan test, visual tests
Fixed channel management and power supply units in addition to flying probes
Offline Programming and Repair stations
Barcode and 2D-code reading management
Automated statistics data collection
Automated programming via CAD data import
